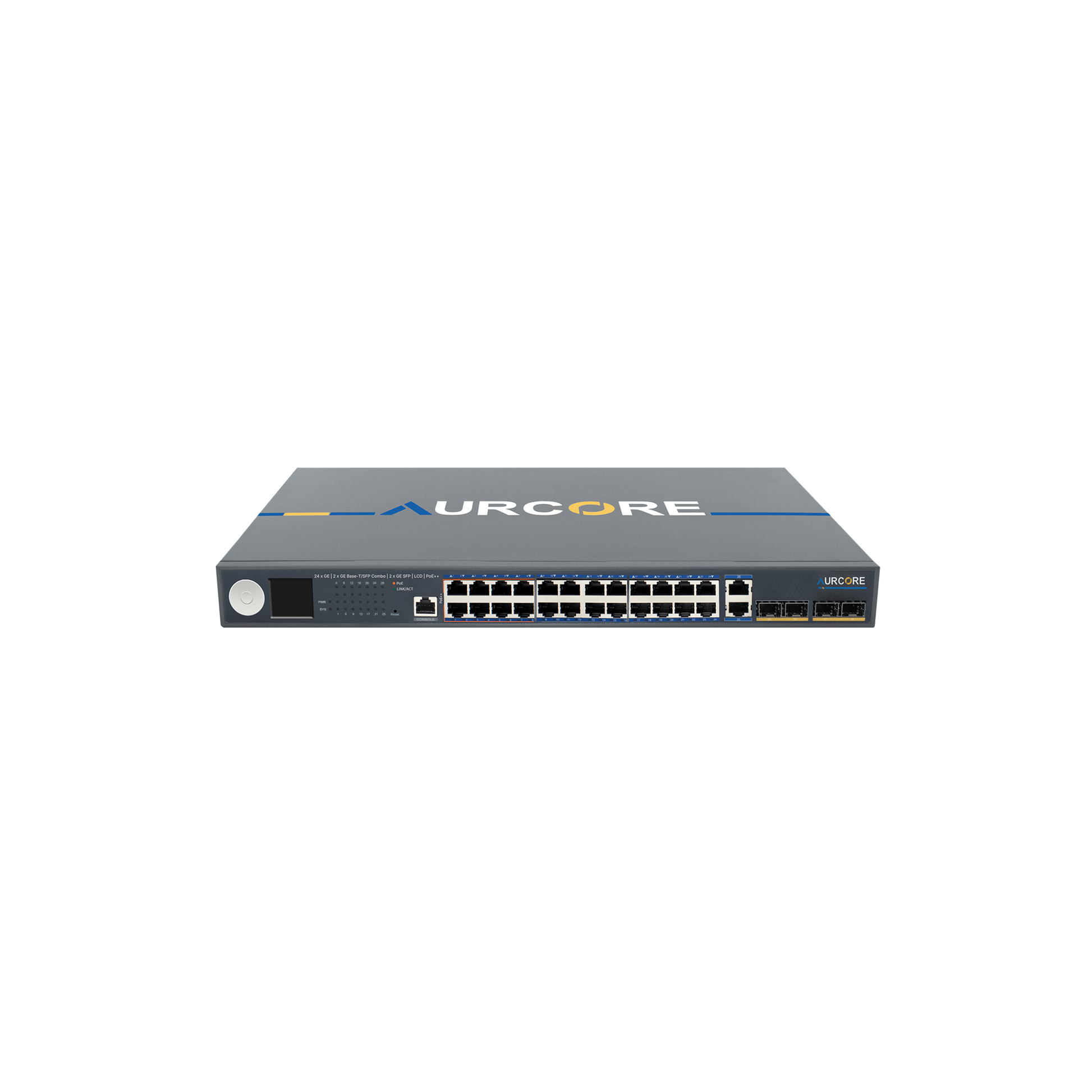

AES2012P | 24 x GE(PoE++), 2 x GE Combo, 2 x GE SFP | LCD
- Regular price
- $538.00
- Sale price
- $538.00
- Regular price
-

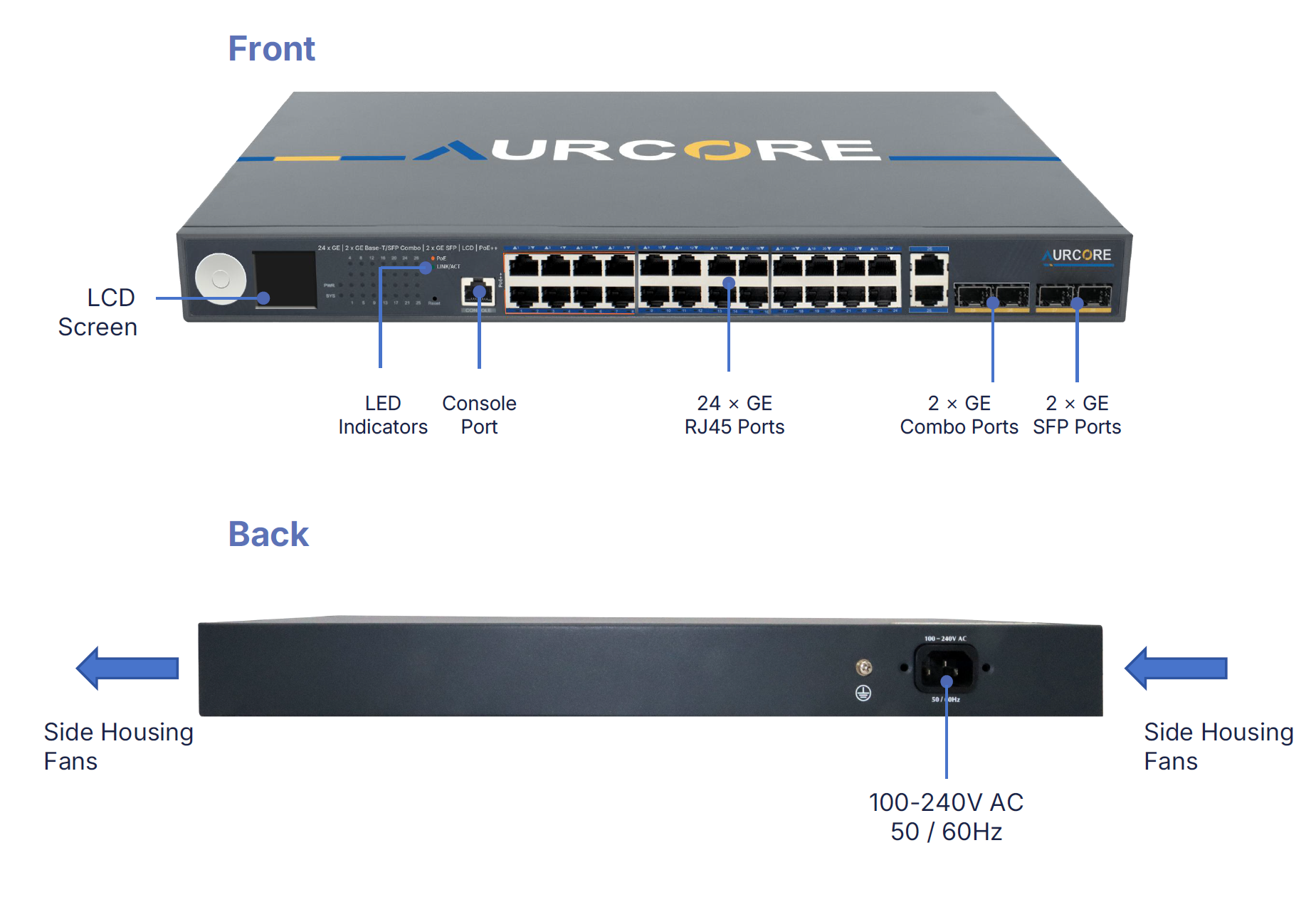

- 24 PoE++ RJ45 ports, 2 GE combo ports, and 2 GE SFP uplink ports
- Built-in LCD showing real-time PoE, bandwidth, and port load
- Supports IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++)
- Switching capacity: 56 Gbps; forwarding rate: 41.66 Mpps
- Supports static routing, VLAN, QoS, and ACL
- Centralized management via Web GUI, CLI, SNMP, SSH, and AURC-NOS
- ±4KV / ±6KV surge protection
- Operating temperature: 0–40°C
- Optimized for IoT, smart buildings, and high-density PoE
- Ideal for powering IP cameras, sensors, access points, and other edge devices
AES2012P Summary
The AES2012P is a robust, enterprise grade managed Ethernet switch designed to meet the demands of modern networks across commercial and educational environments. Built for high reliability and seamless integration, it supports advanced traffic management, secure segmentation, and
centralized control through AURC-NOS using ACC & ACN platforms.
Featuring an intuitive LCD for real-time monitoring of PoE status, bandwidth, and port loads, along with CCTV function for PoE transmission and intelligent control, the AES2012P offers versatile PoE++ support, surge protection, and flexible uplinks.
High Availability and Multi-Service Support
Error-Free Network Configuration
Secure and Simplified Access for Users and IoT
Specifications
| Interface | 24 x GE | 2 x GE Base-T/SFP Combo | 2 x GE PoE | LCD | PoE++ |
| Management Port | 1 x Console Port |
| Packet Forwarding Rate | 41.66 Mpps |
| Switching Capacity | 56 Gbps |
| PoE Power Budget | 480W |
| Dimensions (L x W x H) | 17.32" x 8.15" x 1.73" / 1U height |
| Operating Temperature | 0°C ~ 40°C (32 °F to 104 °F) |
| Storage Temperature | -40°C ~ 70°C (-40 °F to 158 °F) |
