AES6002 | 48 x 10GE SFP+, 6 x 100GE QSFP28, L3 Data Center Switch

Regular price: $6,409.00
Sale price: $6,409.00
Regular price

48 × 10GE SFP+ and 6 × 100GE QSFP28 ports (QSFP28 supports 100GE/40GE or breakout to 4 × 25GE/10GE)
Layer 2/3 forwarding up to 2.18 Tbps
Flexible airflow options: front-to-back or back-to-front

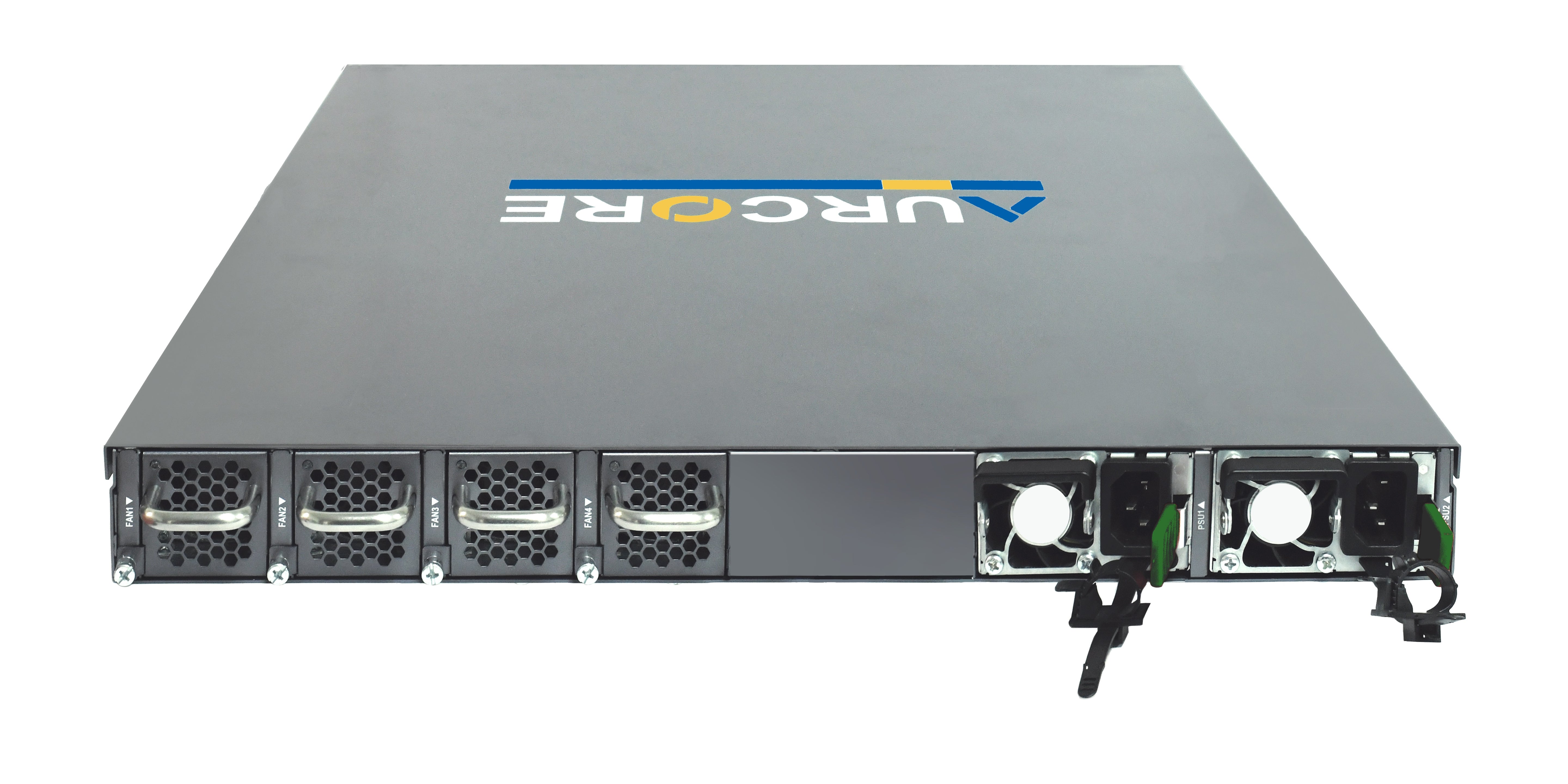

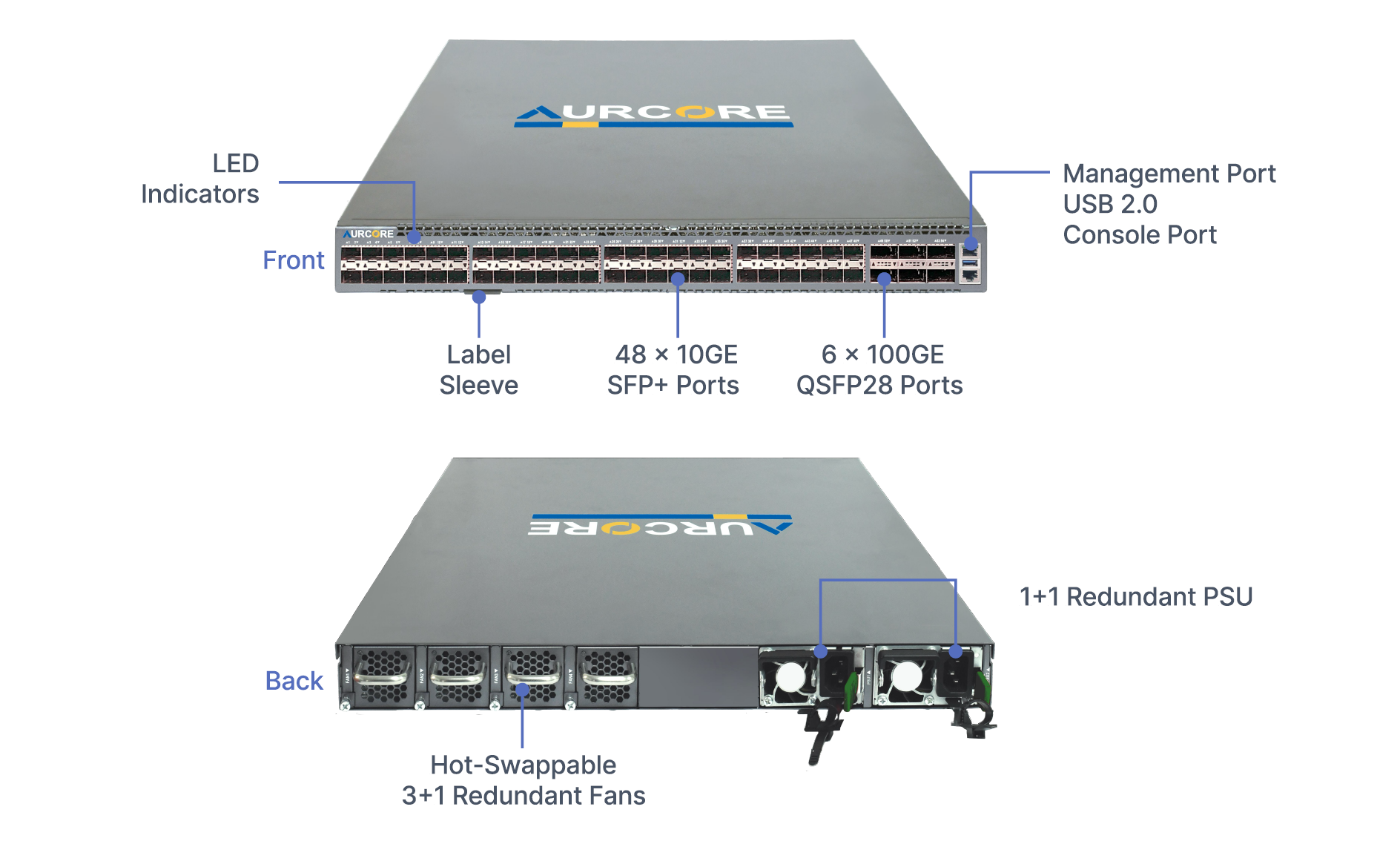

Front-facing ports; PSUs and fans at rear
Hot-swappable, redundant AC/DC power supplies
3+1 redundant, hot-swappable fan modules
Supports VXLAN, EVPN, MLAG, and advanced routing (BGP, OSPF, IS-IS, MPLS)
Pre-loaded with ONIE for easy installation of open-source or commercial NOS

30-Day Returns

3 Year Warranty

30-Day Exchange

AES 6002 Summary

The AES6002 delivers high-throughput, lowlatency switching engineered for spine-layer deployments in modern data centers. It supports line-rate Layer 2 and Layer 3 switching across 48 x 10GE SFP+ and 6 x 100GE QSFP28 ports.

Pre-loaded with the Open Network Install Environment (ONIE), the AES6002 enables flexible installation of compatible Network Operating Systems, platforms such as SONiC and commercial NOS solutions for enterprise-grade functionality.

High Availability and Multi-Service Support

Error-Free Network Configuration

Secure and Simplified Access for Users and IoT

Specifications

Interface	48 x 10GE SFP+ Slots \| 6 x 100GE QSFP28 Slots
Management Port	1 x MGMT Ports, 1 x Console Port, 1 x USB Ports
Packet Forwarding Rate	600 Mpps
Switching Capacity	2.18Tbps
Dimensions (L x W x H)	16.14" x 17.32" x 1.75" / 1U height
Full Weight	9.5kg / 20.94 lbs
Fan	4 hot-swappable fan modules for front/rear ventilation
Power Supply	2 (1+1 Redundancy), Hot-swappable
Power Consumption	Static (Dual AC): 76W , Maximum (Dual AC): 300W
