AES6101 | 48 x 25GE SFP28, 6 x 100GE QSFP28, L3 Data Center Switch

Regular price: $7,410.00
Sale price: $7,410.00
Regular price

Designed for Top-of-Rack with 10/25GE server access and 40/100GE uplinks

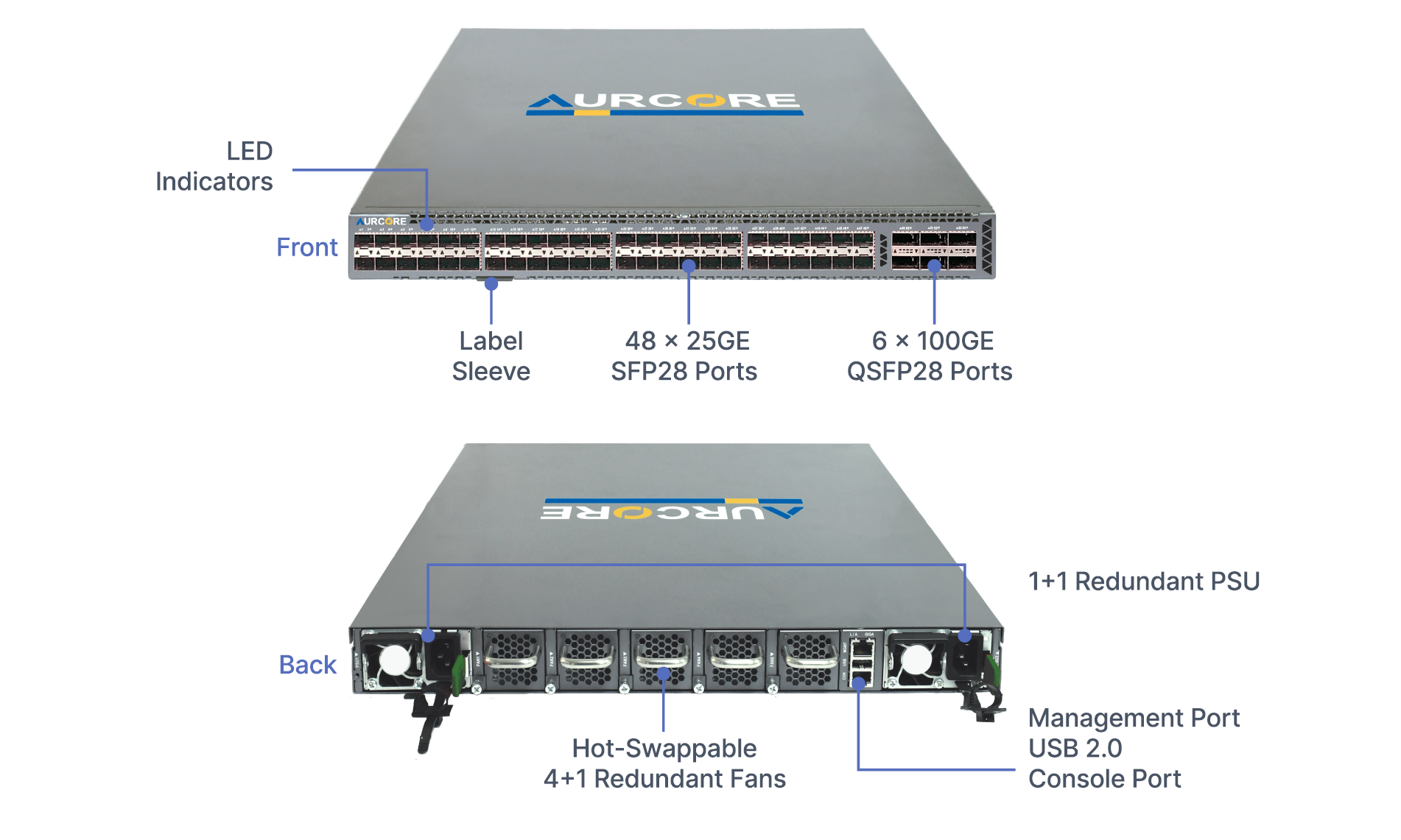

48 × 25GE SFP28 and 6 × 100GE QSFP28 ports (QSFP28 supports 100GE/40GE or breakout to 4 × 25GE/10GE)
Layer 2/3 forwarding up to 3.6 Tbps
Front-to-back or back-to-front airflow options

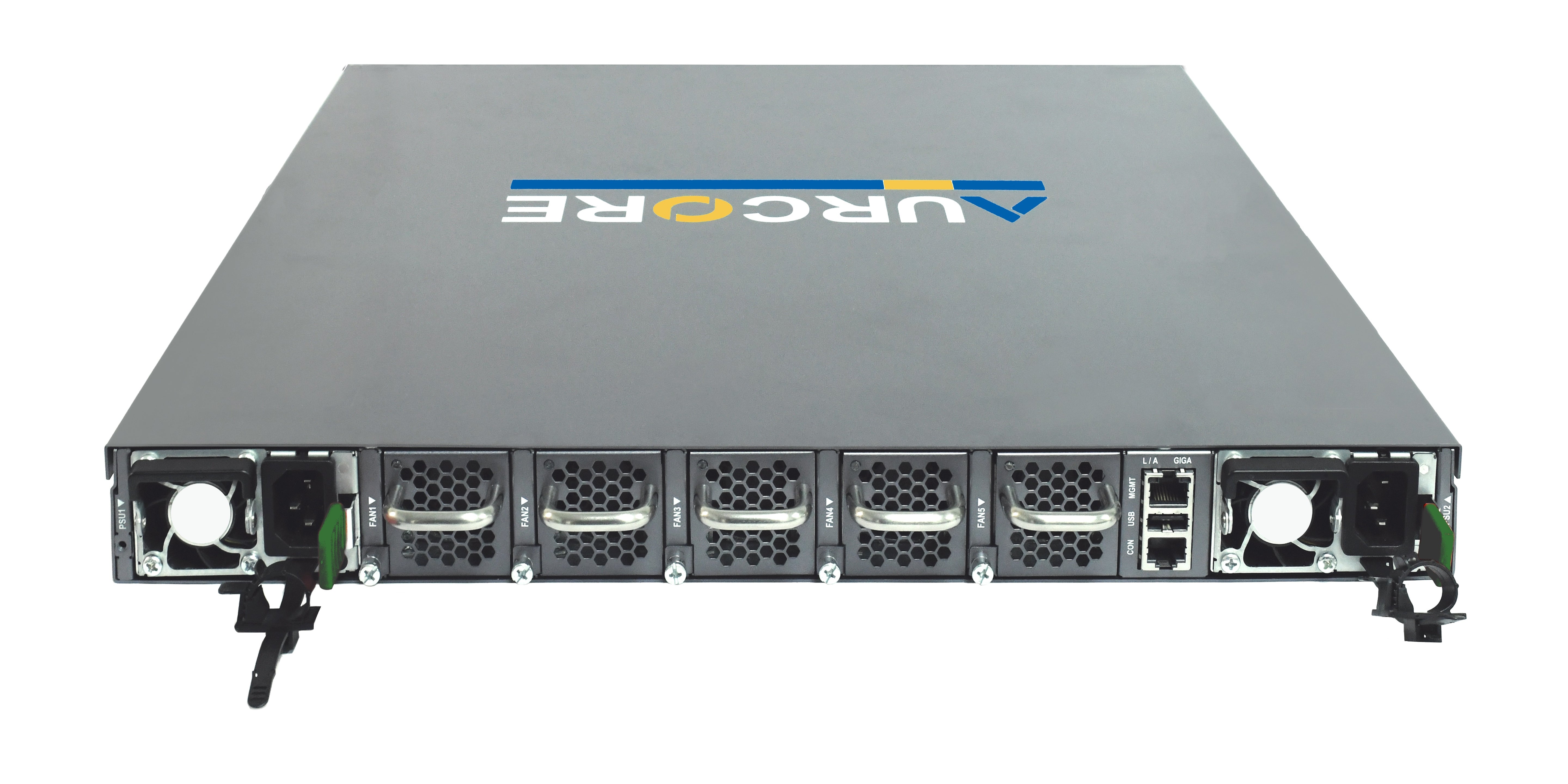

Front-facing ports; rear-access PSUs and fans
Hot-swappable, redundant AC/DC power supplies
4+1 redundant, hot-swappable fan modules
VXLAN, EVPN, MLAG, plus advanced routing (BGP, OSPF, IS-IS, MPLS)
Pre-loaded with ONIE for flexible NOS installation

30-Day Returns

3 Year Warranty

30-Day Exchange

AES 6101 Summary

The AES61O1 delivers high-throughput, lowlatency switching designed for spine-layer deployments in modern data centers. It supports line-rate Layer 2 and Layer 3 switching across 48 x 25GE SFP28 and 6 x 100GE QSFP28 ports.

Pre-loaded with the Open Network Install Environment (ONIE), the AES6101 enables flexible installation of compatible Network Operating Systems, platforms such as SONiC and commercial NOS solutions for enterprise-grade functionality.

High Availability and Multi-Service Support

Error-Free Network Configuration

Secure and Simplified Access for Users and IoT

Specifications

Interface	48 x 25GE SFP28 Slots \| 6 x 100GE QSFP28 Slots
Management Port	1 x MGMT Ports, 1 x Console Port, 1 x USB Ports
Packet Forwarding Rate	1050 Mpps
Switching Capacity	3.6Tbps
Dimensions (L x W x H)	18.50" x 17.32" x 1.75" / 1U height
Full Weight	10kg / 22.05 lbs
Fan	5 hot-swappable fan modules for front/rear ventilation
Power Supply	2 (1+1 Redundancy), Hot-swappable
Power Consumption	Static (Dual AC): 76W , Maximum (Dual AC): 373W
