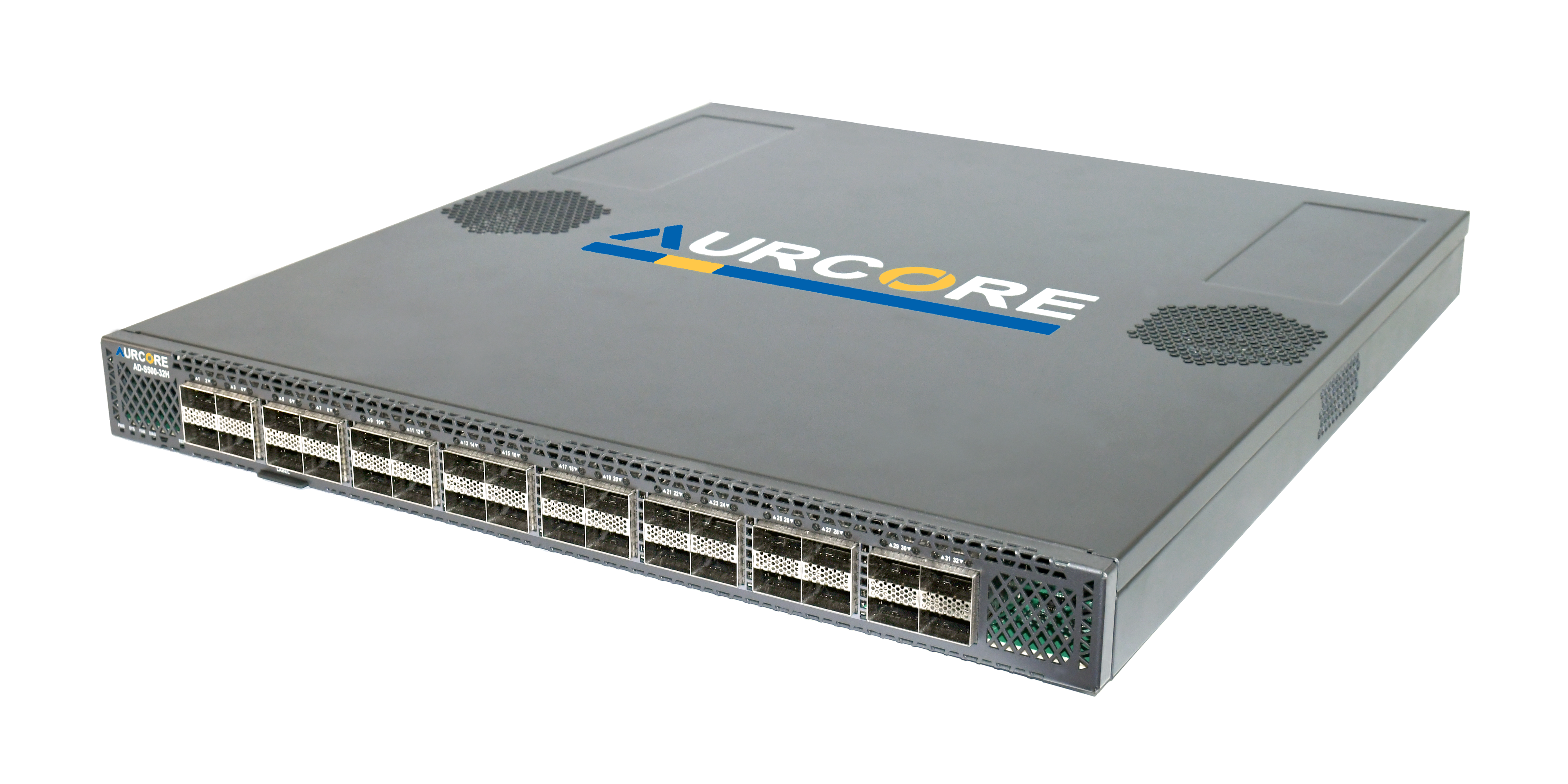

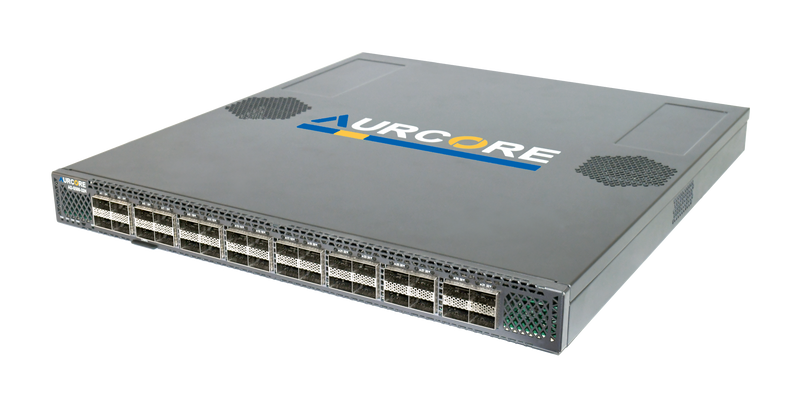

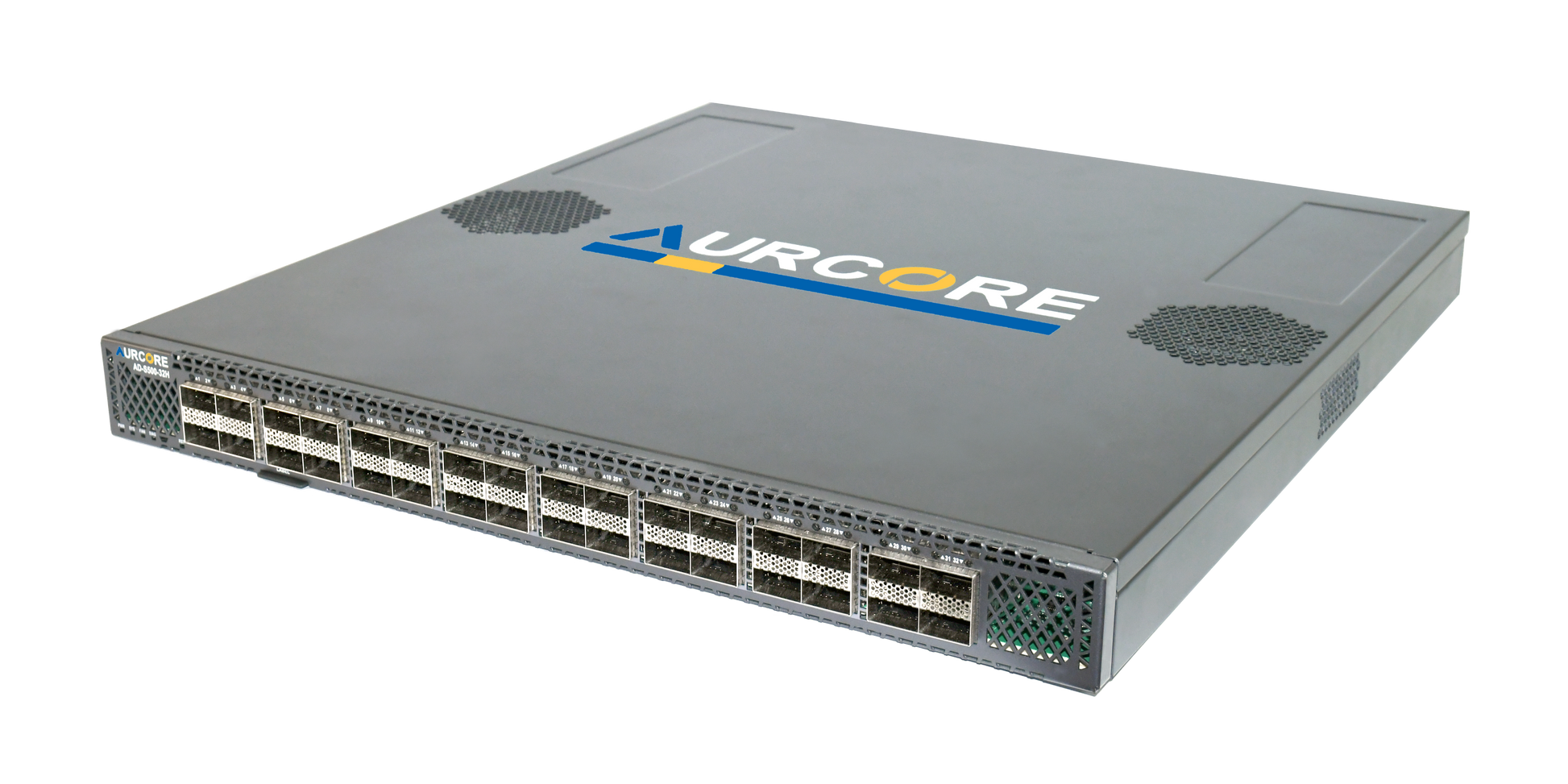

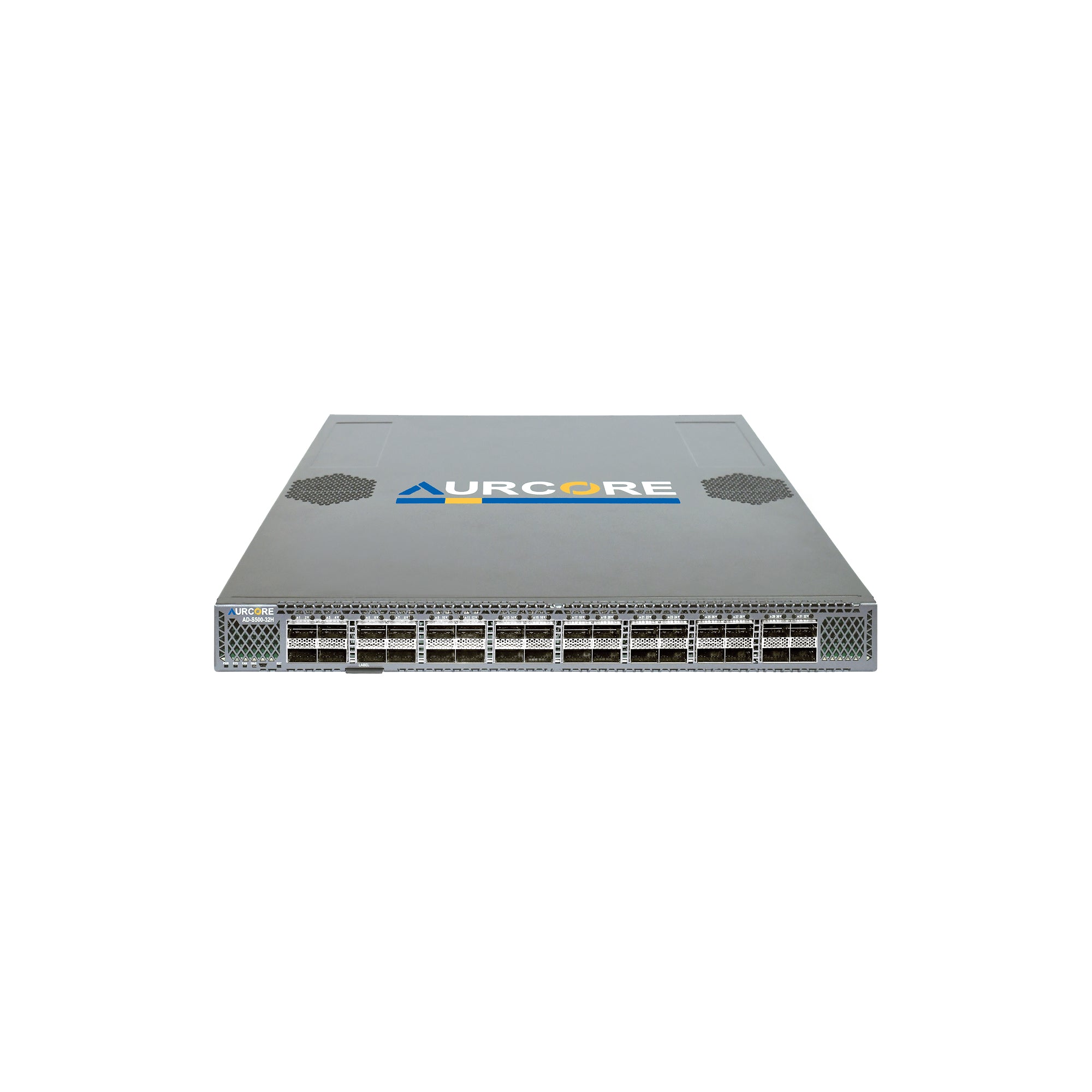

AES6201 | 32 x 100GE QSFP28, L3 Data Center Switch
- Regular price
- $11,545.00
- Sale price
- $11,545.00
- Regular price
-
- Top-of-Rack switch for 10/25GE servers with 40/100GE uplinks

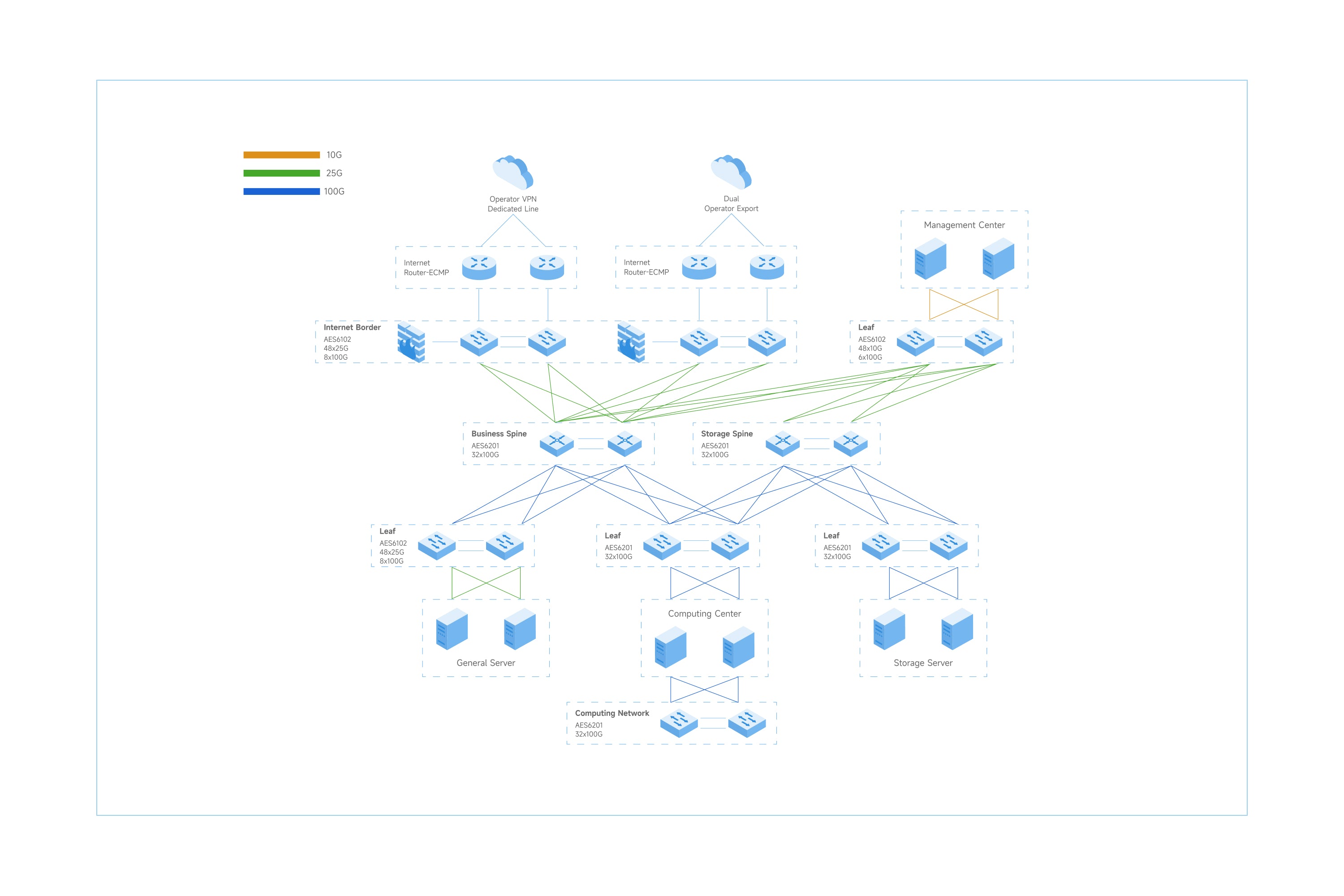

- Can also serve as a spine switch for 40/100GE interconnects

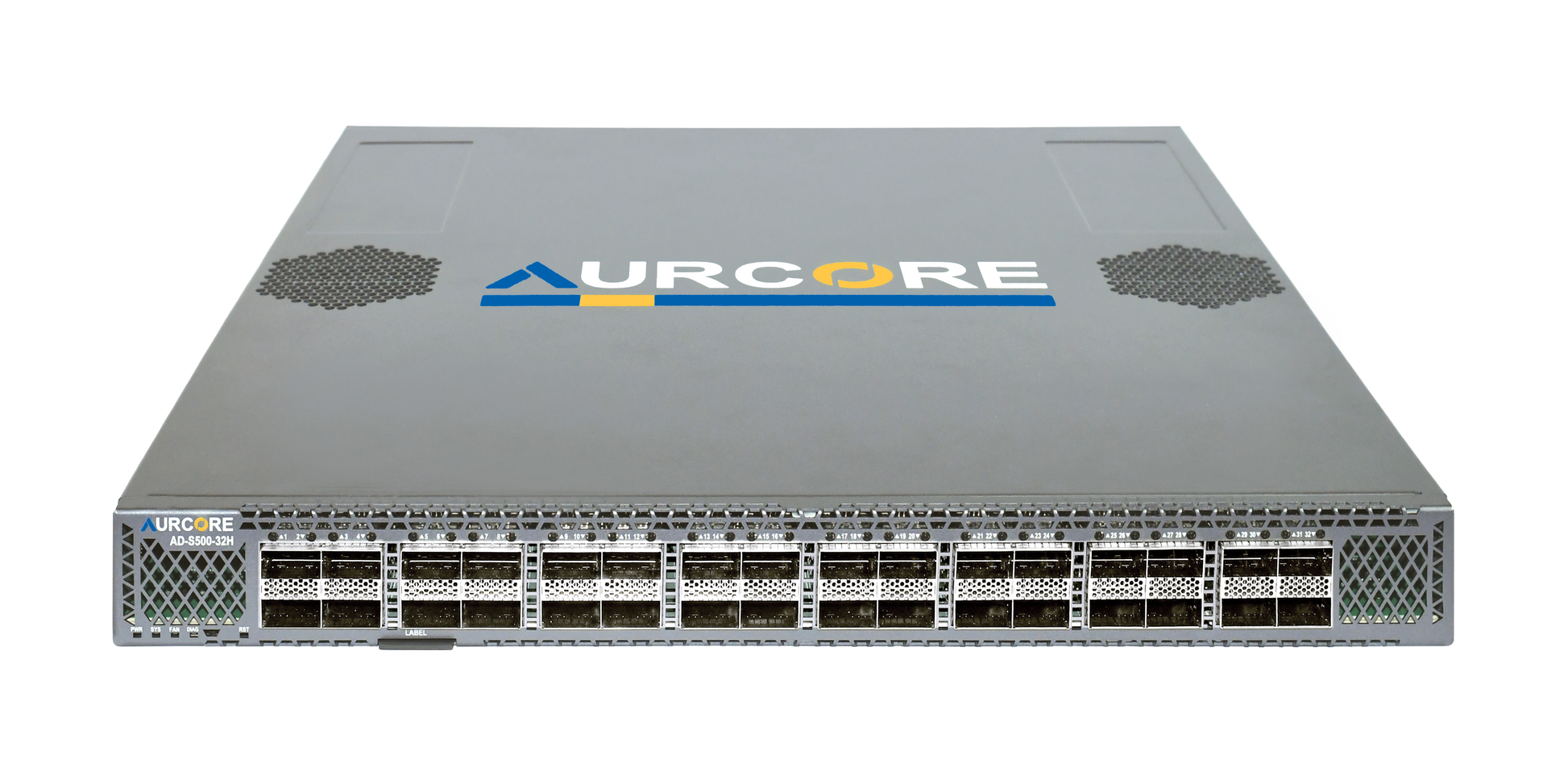

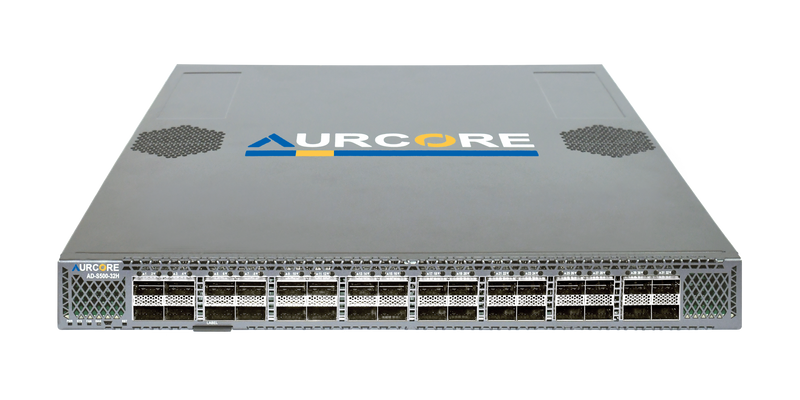

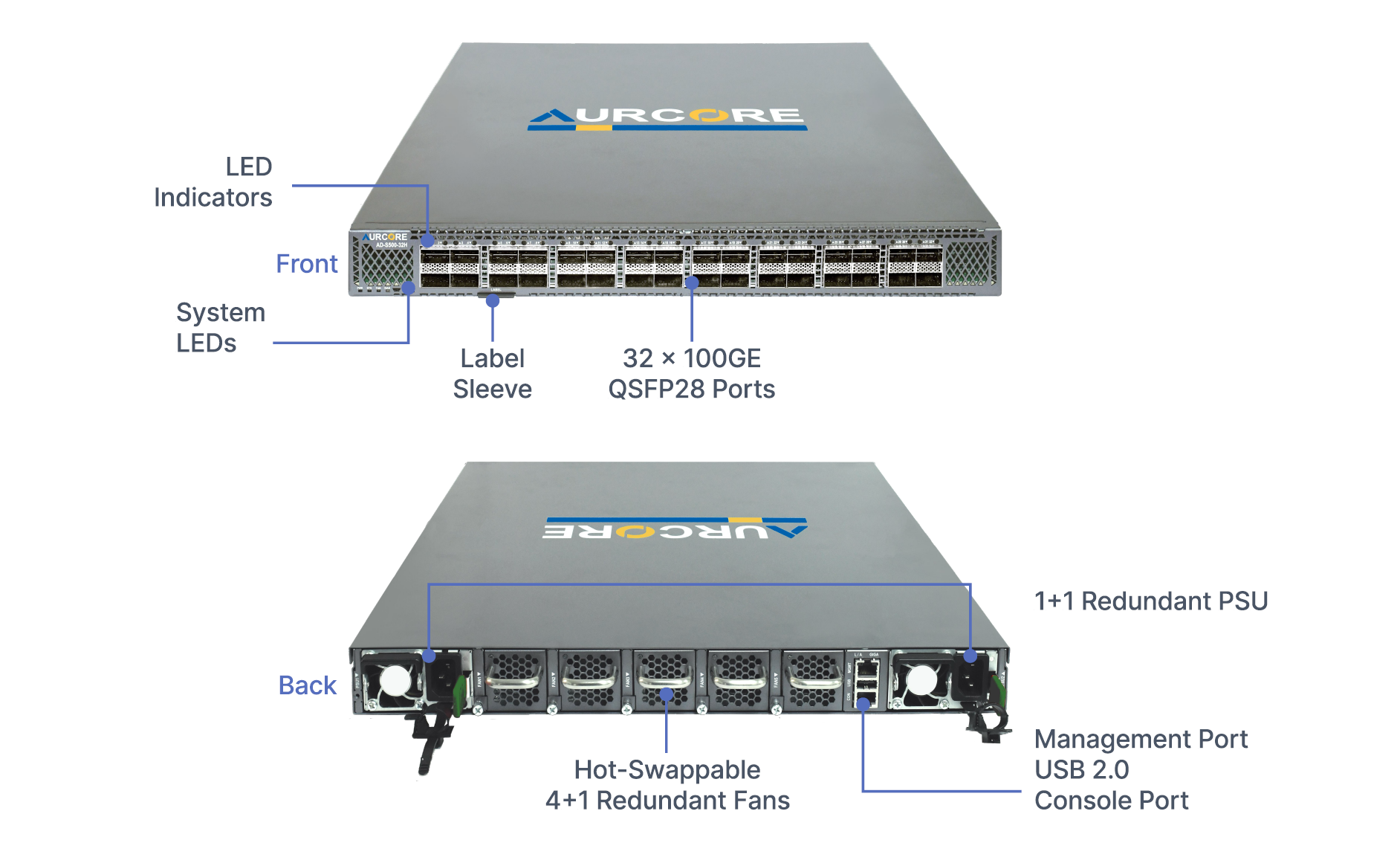

- 32 × 100GE QSFP28 ports (supporting 100GE/40GE or breakout to 4 × 25GE/10GE)
- Layer 2/3 forwarding up to 6.4 Tbps
- Front-to-back or back-to-front airflow options

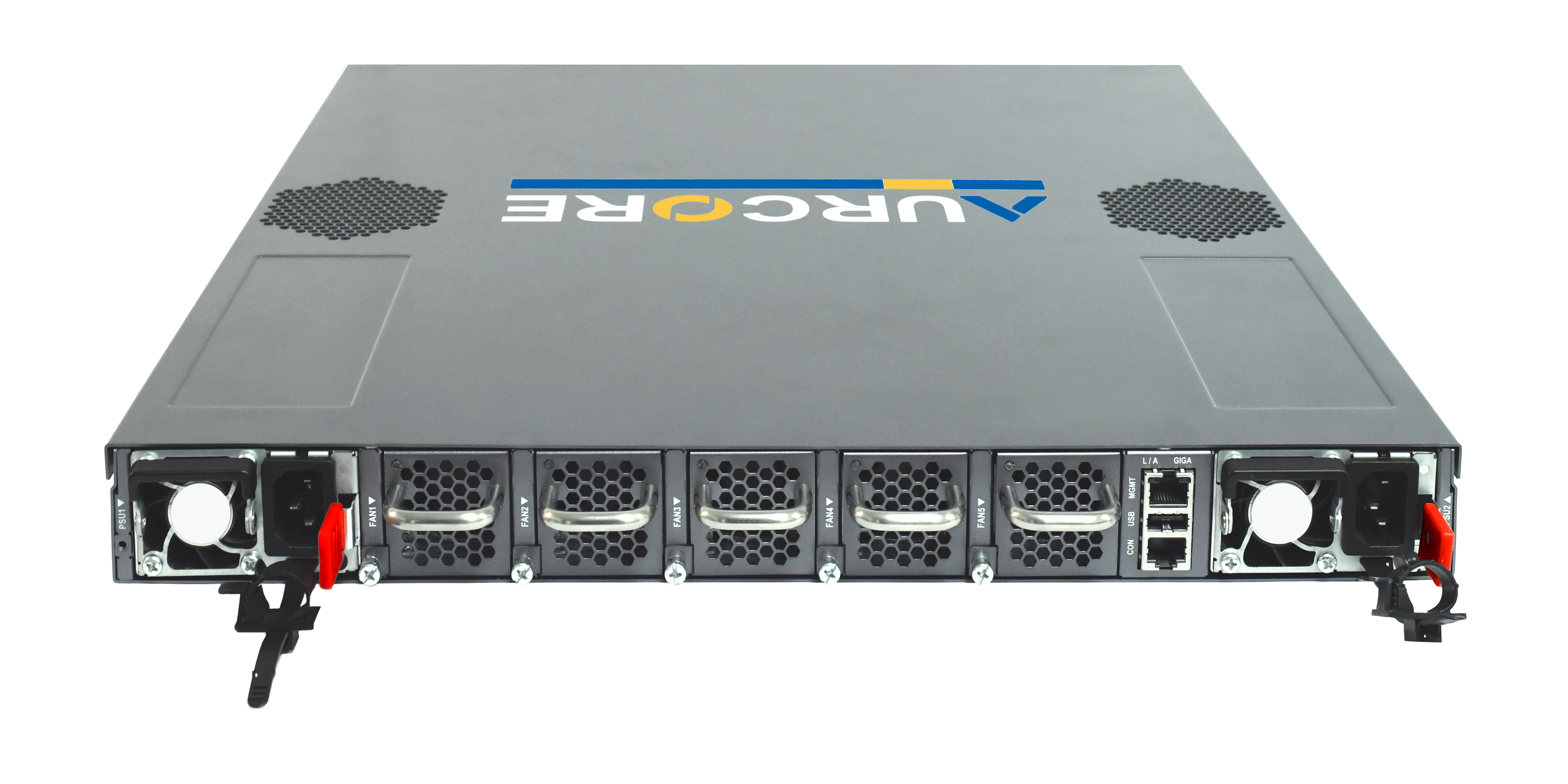

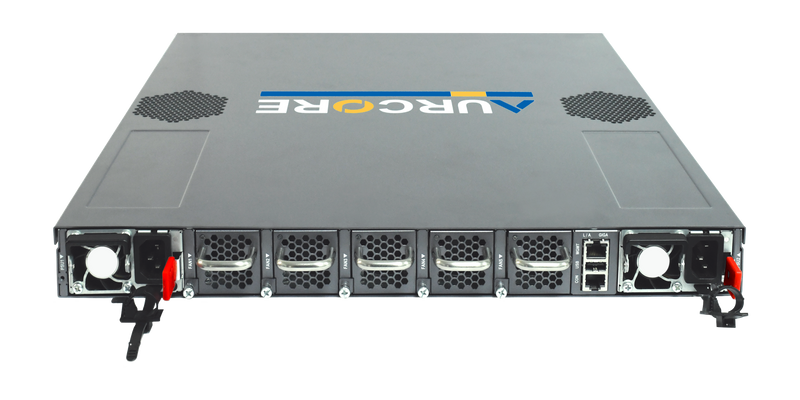

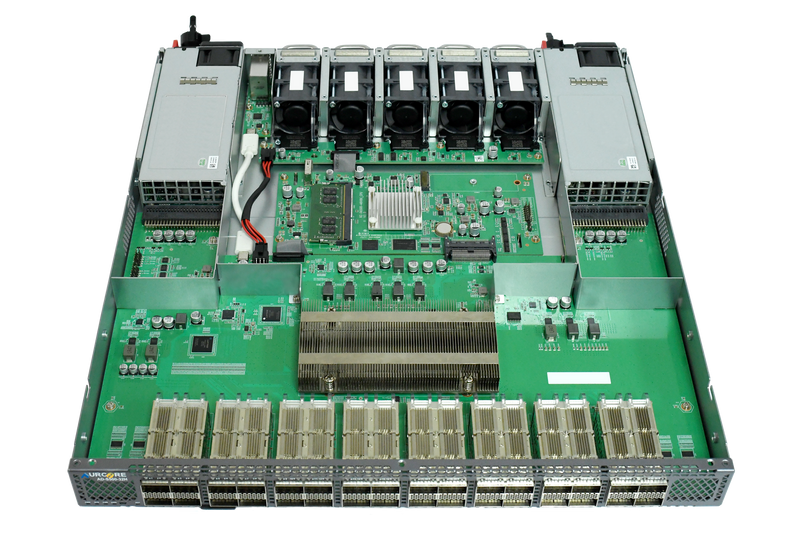

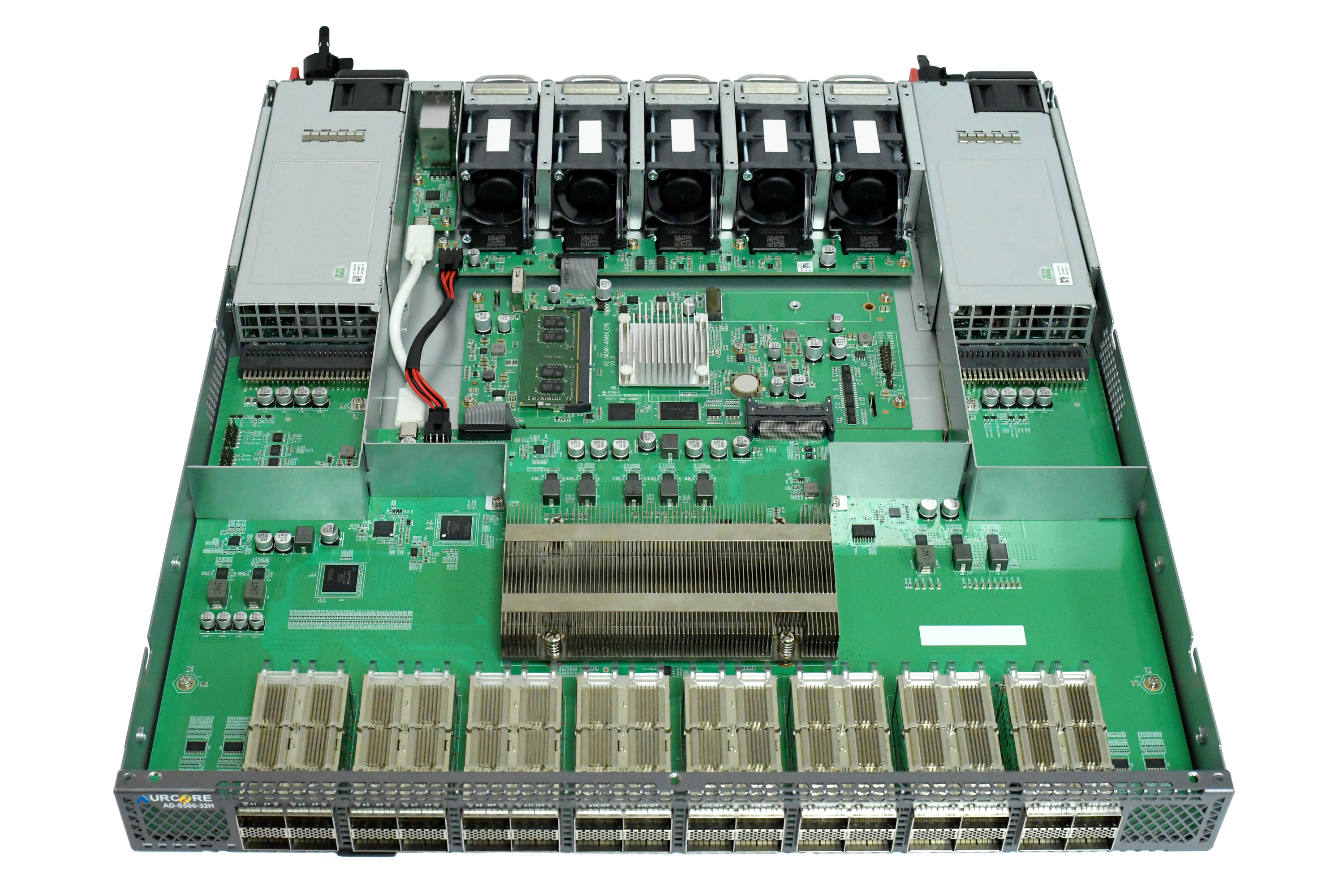

- Front-facing ports; rear-access PSUs and fans
- Hot-swappable, redundant AC/DC power supplies
- 4+1 redundant, hot-swappable fan modules
- VXLAN, EVPN, MLAG, plus advanced routing (BGP, OSPF, IS-IS, MPLS)
- Pre-loaded with ONIE for flexible open-source or commercial NOS installation
AES 6201 Summary
The AES6201 delivers high-throughput, lowlatency switching optimized for spine-layer deployments in modern data centers. Its space-efficient 1 RU form factor supports line-rate Layer 2 and Layer 3 switching across 32 x 100GE QSFP28 ports.
Pre-loaded with the Open Network Install Environment (ONIE), the AES6201 enables flexible installation of industry-standard Network Operating Systems, including both open-source platforms such as SONiC and commercial NOS solutions for enterprisegrade functionality.
High Availability and Multi-Service Support
Error-Free Network Configuration
Secure and Simplified Access for Users and IoT
Specifications
| Interface | 32 x 100GE QSFP28 Slots |
| Management Port | 1 x MGMT Ports, 1 x Console Port, 1 x USB Ports |
| Packet Forwarding Rate | 2800 Mpps |
| Switching Capacity | 6.4Tbps |
| Dimensions (L x W x H) | 18.50" x 17.32" x 1.75" / 1U height |
| Full Weight | 11kg / 24.25 lbs |
| Fan | 5 hot-swappable fan modules for front/rear ventilation |
| Power Supply | 2 (1+1 Redundancy), Hot-swappable |
| Power Consumption | Static (Dual AC): 173W , Maximum (Dual AC): 512W |
