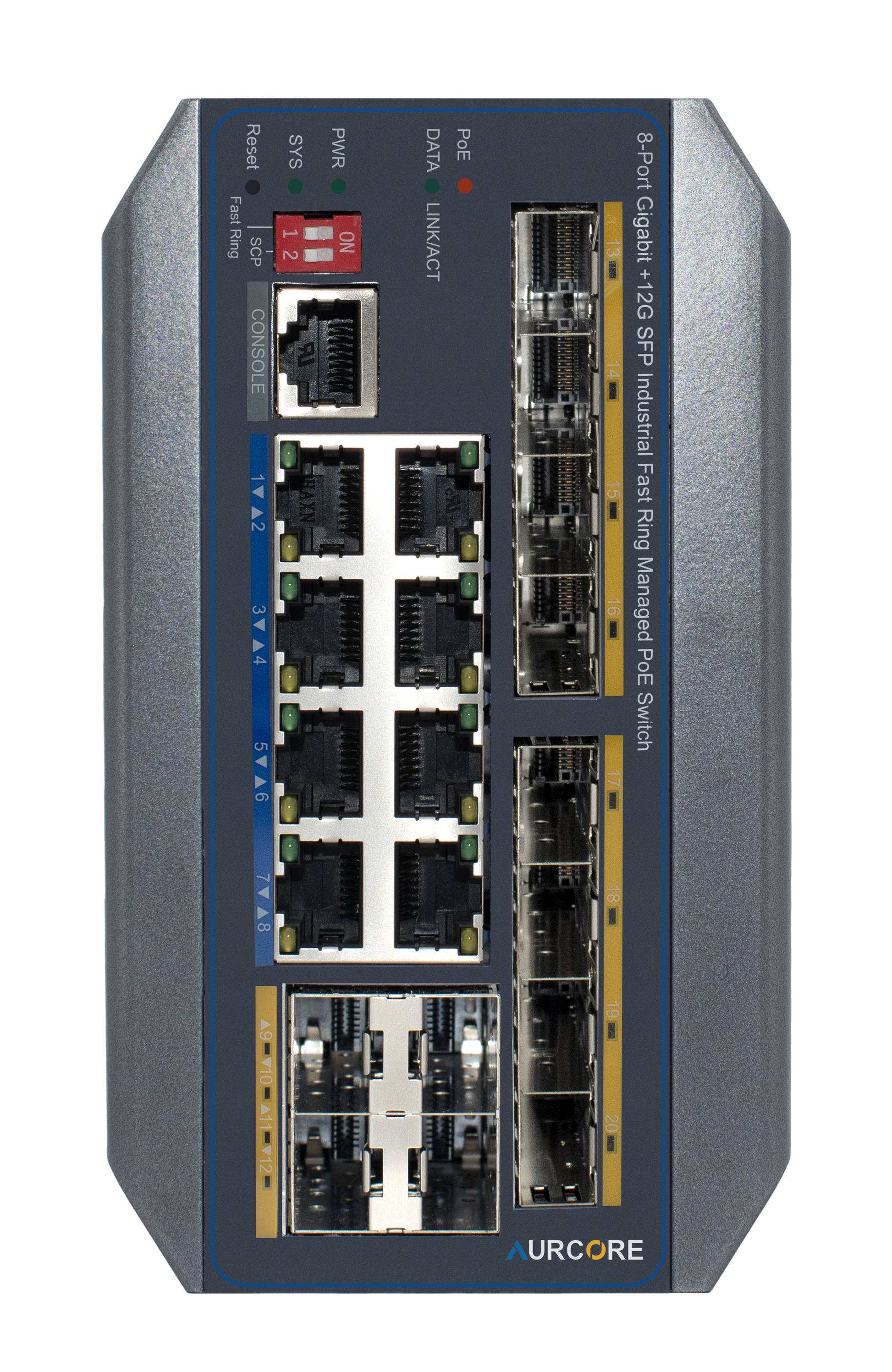

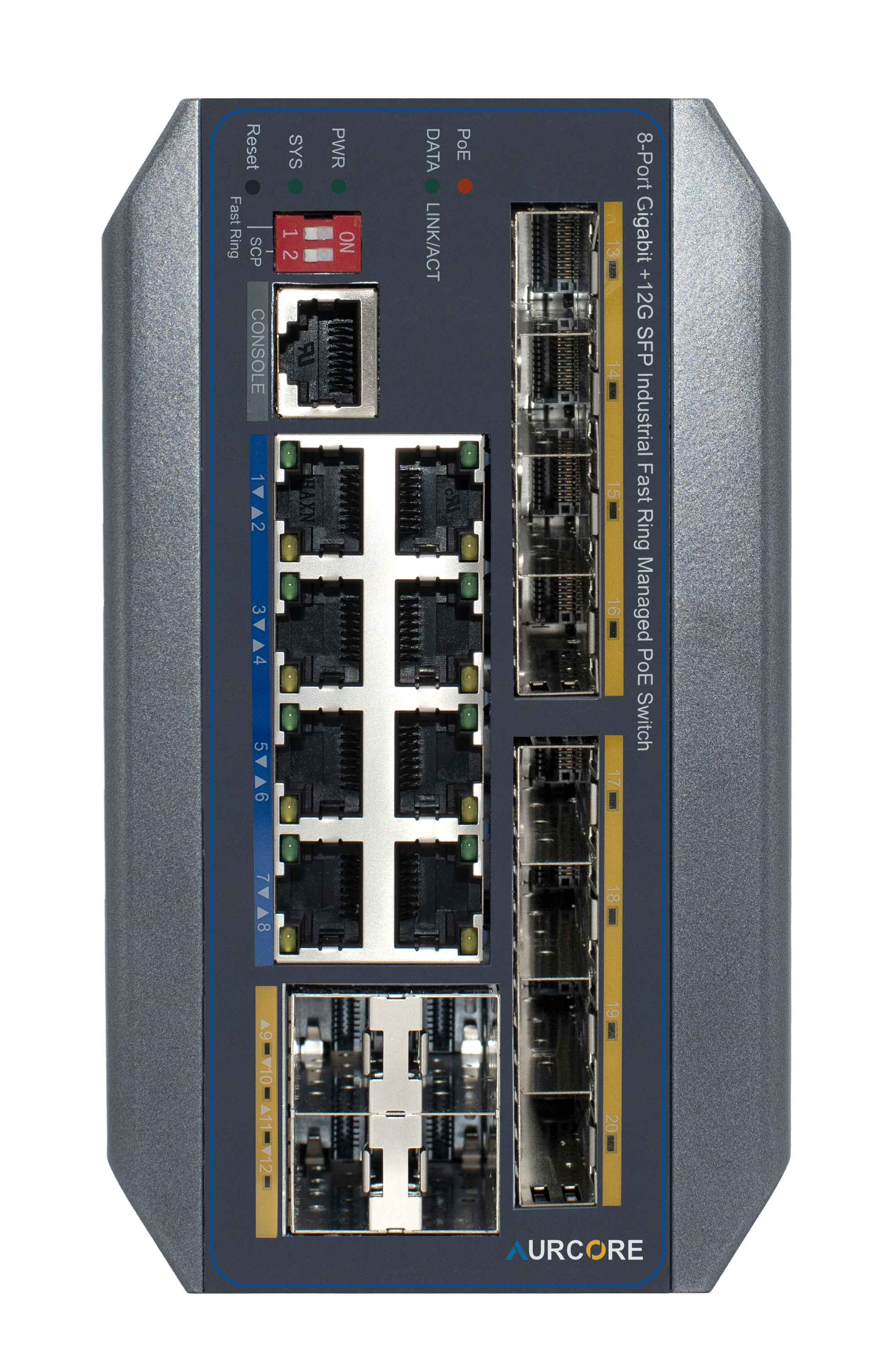

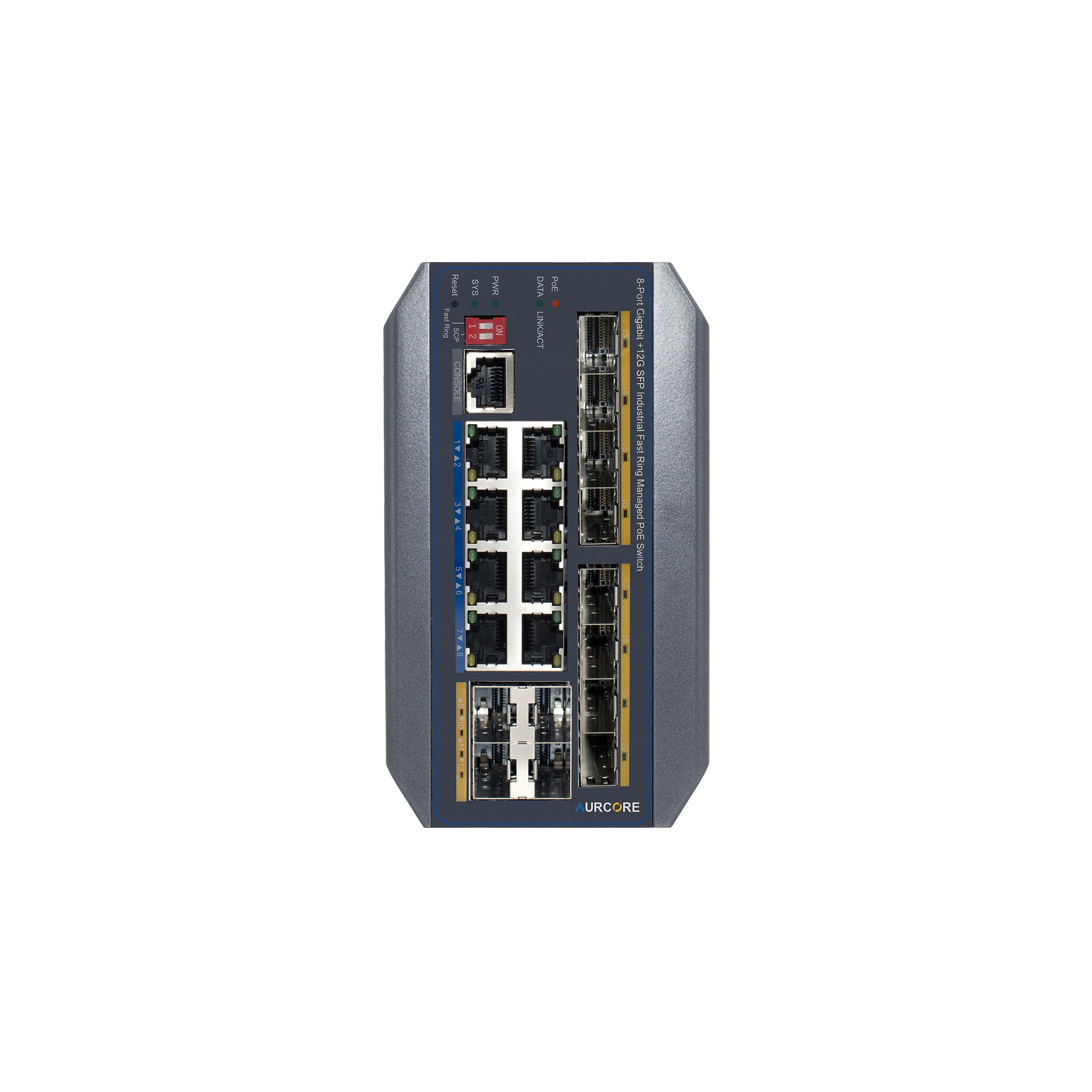

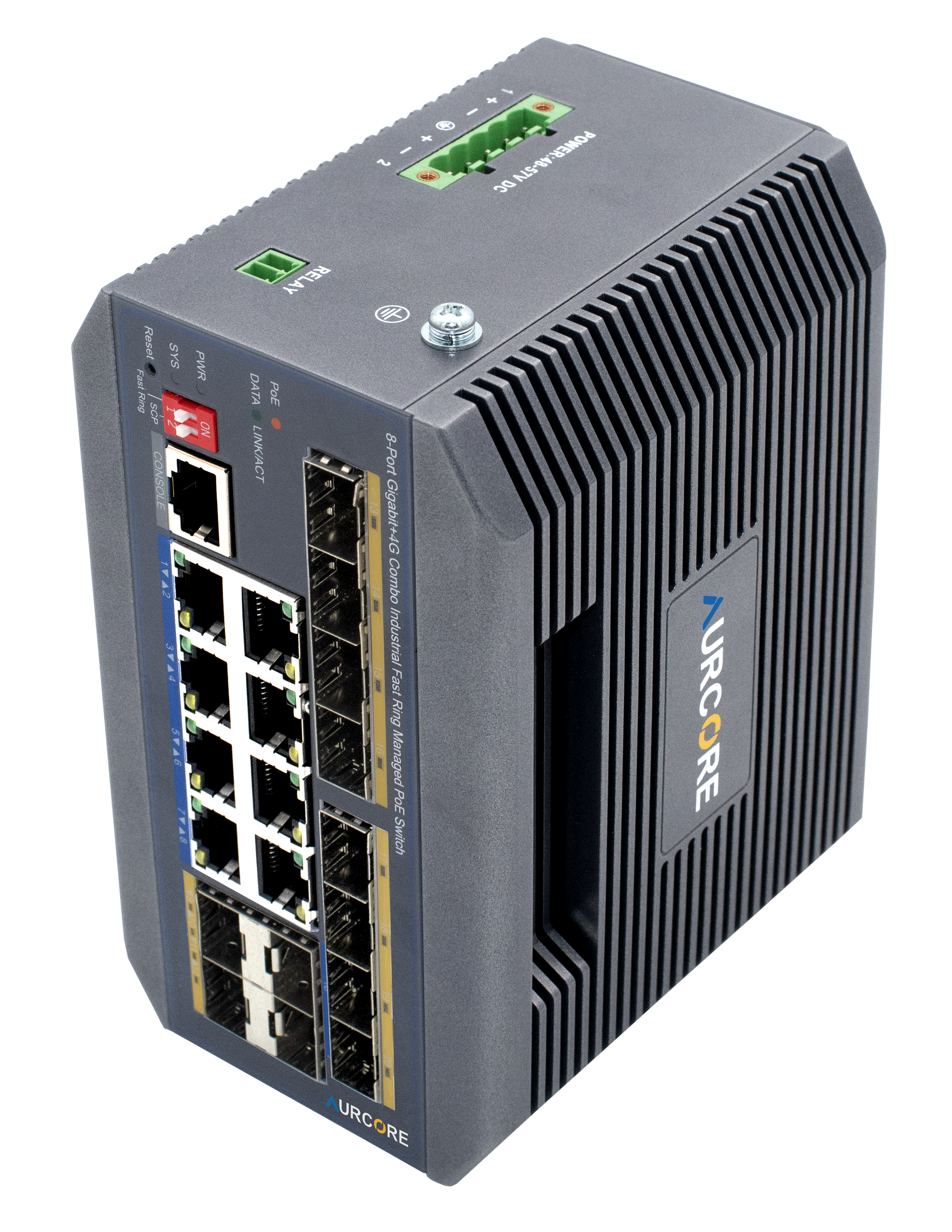

AIS2004P | 8 x GE (PoE+), 12 x GE SFP
- Regular price
- $805.00
- Sale price
- $805.00
- Regular price
-
- Designed for smart manufacturing, transportation, and outdoor IoT/IIoT
- 4 × Gigabit PoE+ ports and 2 × GE SFP uplinks
- Compact industrial-grade Layer 2+ managed switch
- Switching capacity: 12 Gbps, forwarding rate: 8.92 Mpps
- Operating temperature: -40°C to 75°C
- Fanless all-aluminum housing for cooling and corrosion resistance
- Surge protection: ±2KV differential, ±6KV common

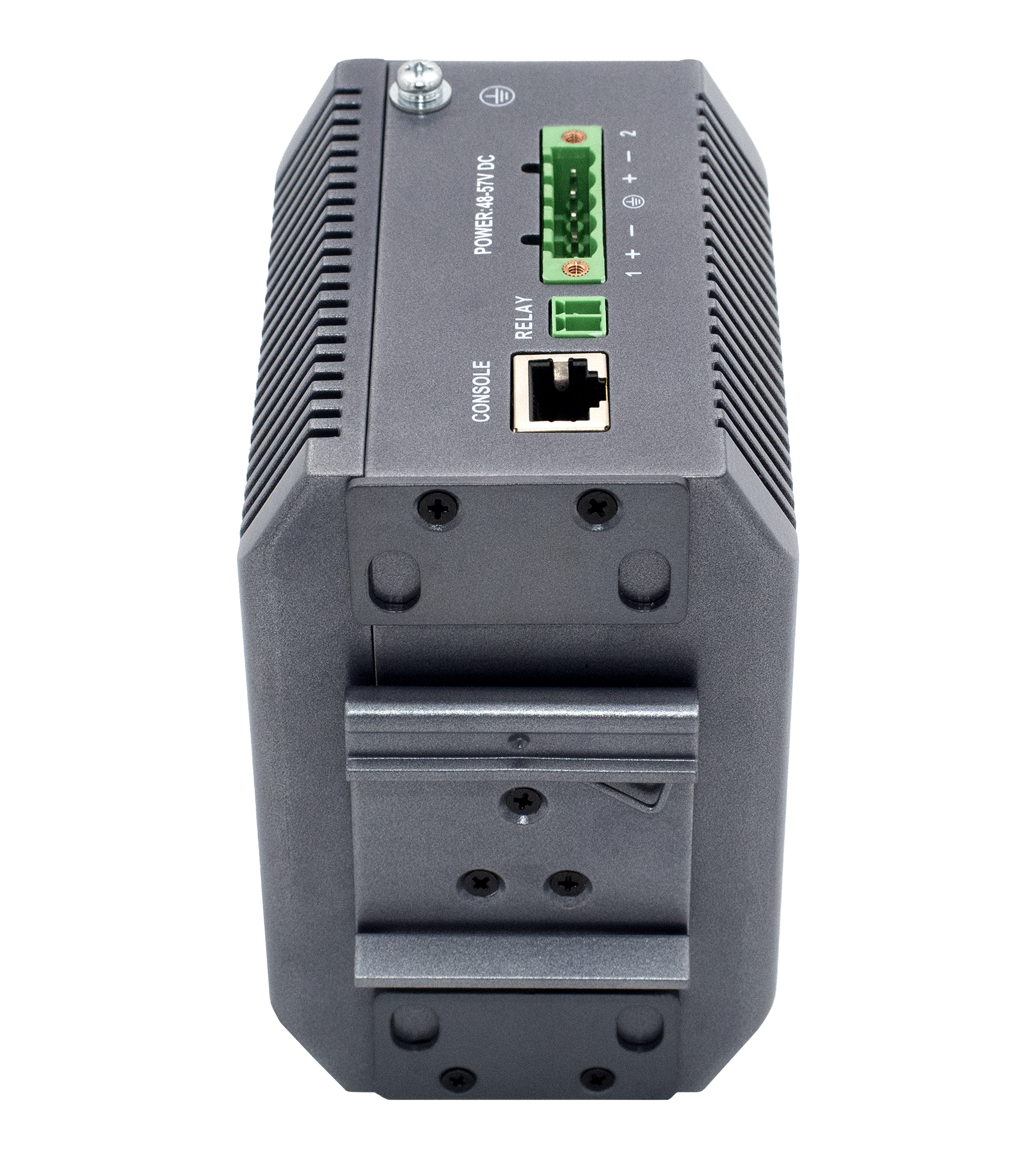

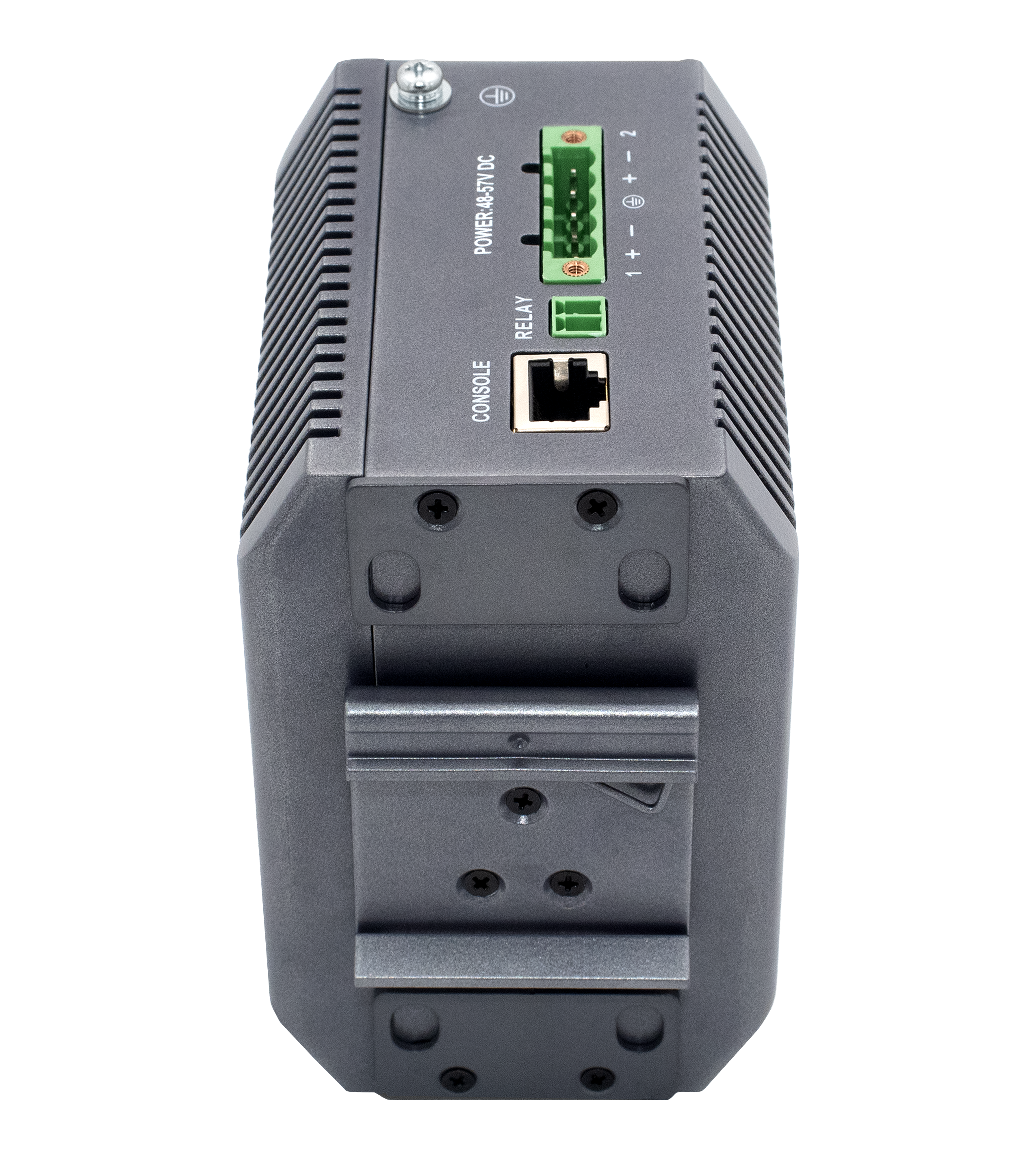

- Dual power input with auto-restart and alarm support
- Jumbo frame support up to 9216 bytes
- Managed via Console, Telnet, SSH, Web GUI, and AURC-NOS
- Supports static routing, VLAN, QoS, and ring protection (STP/RSTP/MSTP/ERPS)

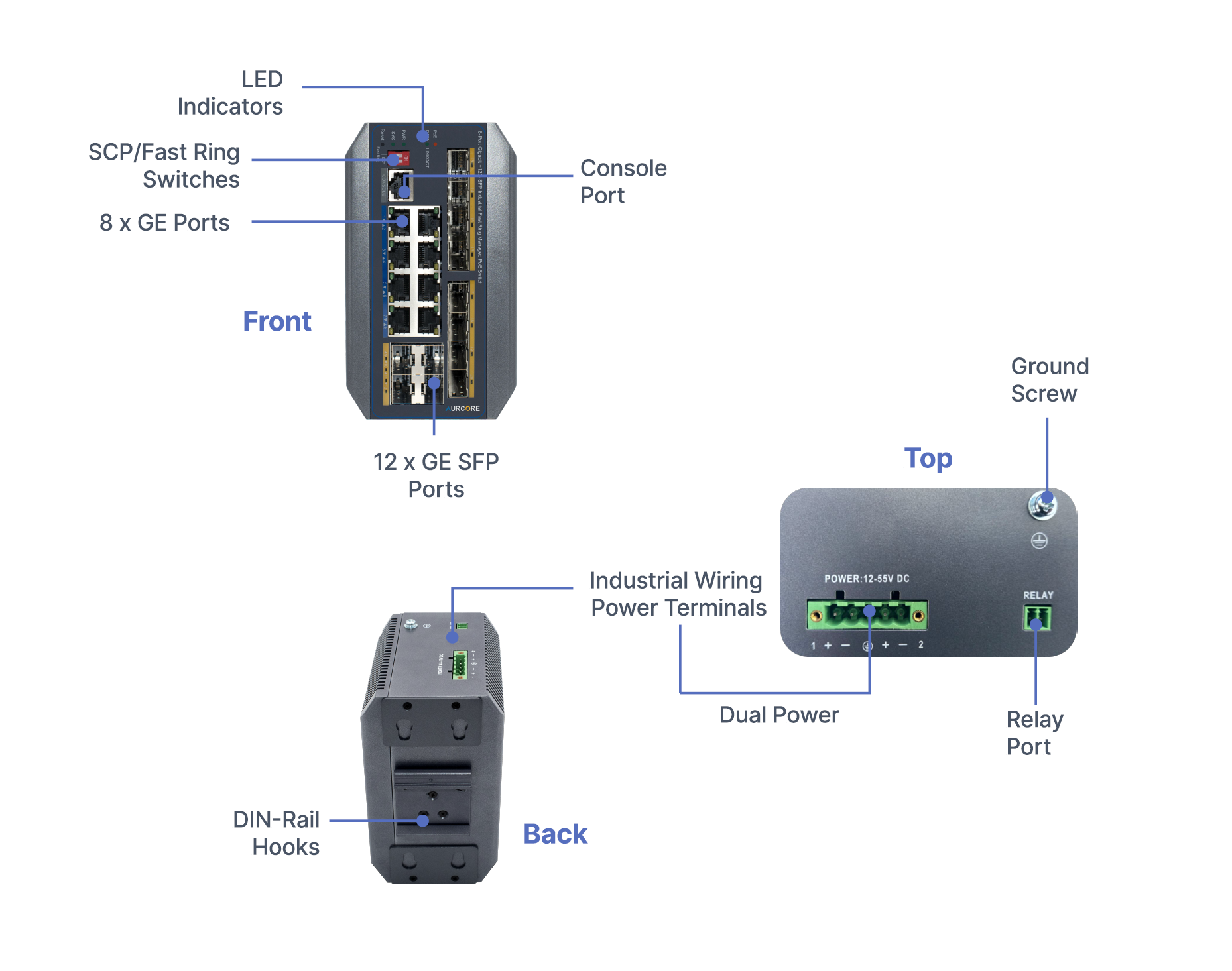

AIS2004P Summary
The AIS2OO4P is a compact, industrial-grade Layer 2+ managed switch engineered for high-performance networking in demanding environments. It simplifies deployment in applications such as surveillance and loT/lloT wireless access by supporting Power over Ethernet (PoE+), reducing cabling complexity and installation costs.
Additional capabilities include dual power input support, integrated lightning and ESD protection, and versatile management options via Console, SSH, and Web interfaces using AURC-NOS ACC/ACN. Ideal for industrial automation, transportation infrastructure, and outdoor deployments, the AIS2OO4P delivers robust connectivity with streamlined integration.
Note: A Power Supply Unit (PSU) is required for operation and is sold separately. For guaranteed compatibility and optimal performance, AurCore Technology recommends Mean Well power supplies, which have been fully tested and verified with our industrial switches.
High Availability and Multi-Service Support
Error-Free Network Configuration
Secure and Simplified Access for Users and IoT
Specifications
| Interface | 8 x GE | 12 x GE SFP | PoE/PoE+ (af/at) |
| Management Port | 1 x Console Port |
| Packet Forwarding Rate | 29.76 Mpps |
| Switching Capacity | 40 Gbps |
| Dimensions (L x W x H) | 5.71" x 4.33" x 3.29" |
| PoE Budget | 200W | Total PoE Budget 180W |
| Operating Temperature | -40°C ~ 75°C (-40 °F to 167 °F) |
| Storage Temperature | -40°C ~ 80°C (-40 °F to 176 °F) |
